Número de pieza de ROW 66:
R14-0743

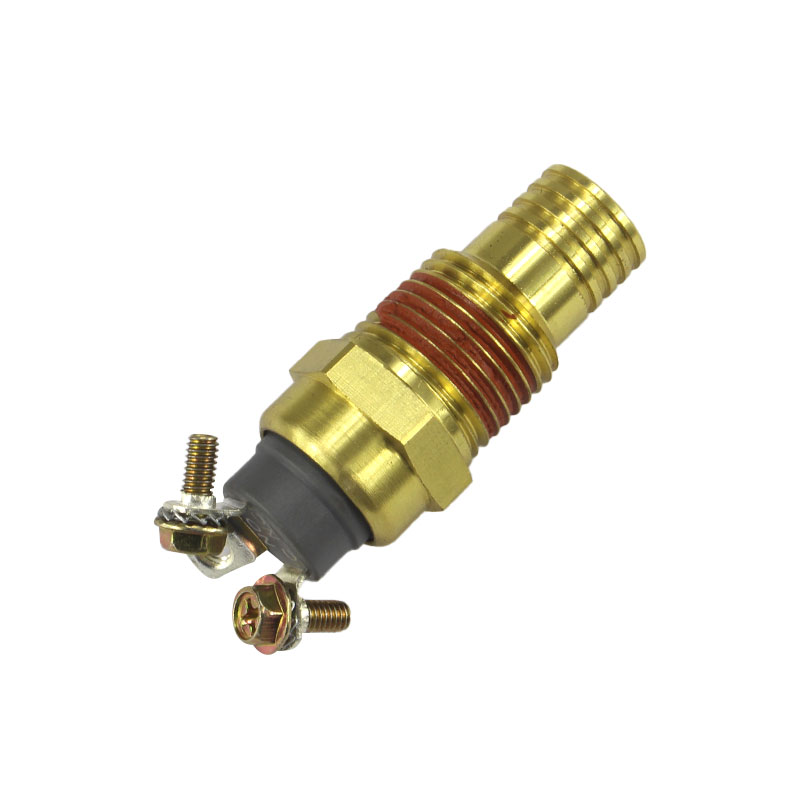

Interruptor de temperatura
THIS TEMPERATURE CONTROL SWITCH CAN BE USED FOR MANY APPLICATIONS BUT PRIMARILY CONTRLS THE FAN CLUTCH THROUGH A NORMALLY OPEN SET-UP OR NORMALLY CLOSED SET-UP.
Número de pieza del equipo original
INDEX
Especificaciones
1/2 - 14 NPT Thread
3 BLADE TERMINALS
TO OPERATE NORMALL OPEN CONNECT NO + C
TO OPERATE NORMALLY CLOSED CONNECT NC + C
SET POINT 200 F
MAX INDUCTIVE CURRENT: 4A OPERATING VOLTAGE RANGE: 12V TO 24V
Aplicaciones
CUMMINS AND INTERNATIONAL UNIVERSAL COMPONENT FOR VARIOUS MAKES AND MODELS INCLUDING 93-97 DT408, DT466 AND DT530 ENGINES
93-99 HEUI 466E ENGINE AND 93-98 HEUI 530E ENGINE
